Metis儀器和設備NV Metis Instruments & Equipment NV 展位號：2533 展出產品：磁滯測定器、 磁性測試儀、充磁機&夾具等 聯系方式：+32-16-298344 網址：www.metis.be 郵箱：contact@metis.be
公司簡介
Metis Instruments成立于1998年，是工業磁性技術合作伙伴，致力于供應磁化設備和磁測量系統。使用我們的旗艦測量系統HyMPulse, 可以測量自由樣品的完整磁滯曲線。由于不再使用極靴和獲得專利的傳感器，最終產品的測量現在又變得簡單了。通過額外的加熱和冷卻，該儀器能夠在-40℃到220℃的溫度范圍內跟蹤磁性能。 如今，常用的磁化技術包括使用由由電容器放電驅動的銅繞組（帶或不帶極靴）來產生強磁場。挑戰在于如何在磁體中獲得正確的磁場輪廓。作為在磁化過程中使用有限元模型的先驅，Metis Instruments在處理大型和小型組件的磁化方面具有豐富的經驗。我們已經開發了多種技術，可以快速設計定制解決方案。
As a technology partner in industrial magnetics established in 1998, Metis instruments is a supplier of magnetizing equipment and magnetic measurement systems. Measuring the complete hysteresis curve of free form samples is possible with our flagship measurement system: the HyMPulse. With the elimination of pole shoes and patented sensors, measuring your final product now becomes simple again. With additional heating and cooling, the instrument is capable of following the magnetic properties over a temperature range from -40°C to 220°C. The common technology for magnetizing nowadays consists of generating a strong magnetic field using copper windings – with or without pole shoes – driven by a capacitor discharge. The challenges are in obtaining the right field profile in the magnets. As a forerunner using finite element modelling in magnetization processes, the company has extensive experience in handling the magnetization of large as well as small assemblies. Several techniques have been developed allowing to rapidly engineer custom solutions.
部分展品

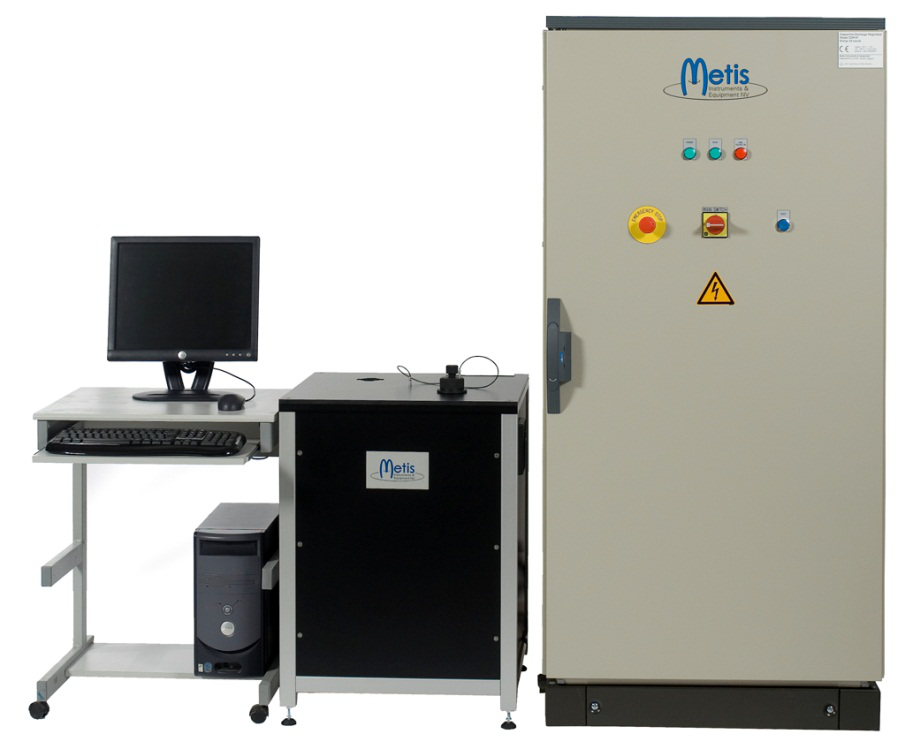

1、磁滯測定器 HyMPulse
產品介紹
領先的磁滯測定器，用于測量高級永磁材料（鐵氧體，NdFeB，SmCo）的退磁曲線（Br，HcB，HcJ和BHmax）。 這款磁性能測試儀可突破傳統磁滯測定器的局限性。通過省去極靴并使用類似于亥姆霍茲線圈的專利傳感器，HyMPulse幾乎可以分析所有樣品幾何形狀和所有永磁材料。
The leading hysteresis meter for measuring the demagnetizing curve (Br, HcB, HcJ and BHmax) of advanced permanent magnetic materials (Ferrite, NdFeB, SmCo). This magnetic properties tester is made to overcome the limitations of a classical magnetic hysteresis meter. By eliminating pole shoes and using a patented sensor similar to the Helmholtz coil, the HyMPulse allows the analysis of virtually any sample geometry and any permanent magnetic material.
2、磁性測試 HyMAC
產品介紹
多功能的測試儀器，用于確定軟磁性材料（如電工鋼板，非晶態導線和帶狀材料）的交流磁性能。 可測量磁性損耗和從BH曲線得出的其他性能。它允許對軟磁材料進行進出檢查，特別是用于變壓器鐵芯和電動機的電工鋼板。 可探測的數量以及定制功能使HyMAC用于各種幾何體和應用領域。
A versatile testing platform for determining the AC magnetic properties of soft magnetic materials like electrical steel sheet, amorphous wire and ribbons. This magnetic properties tester measures losses and other properties derived from the BH curve. It allows incoming and outgoing inspection of soft magnetic materials, typically electrical steel sheet for transformer cores and electrical motors. The number of available probes, and the customization makes the HyMAC useful for large range of geometries and application areas.

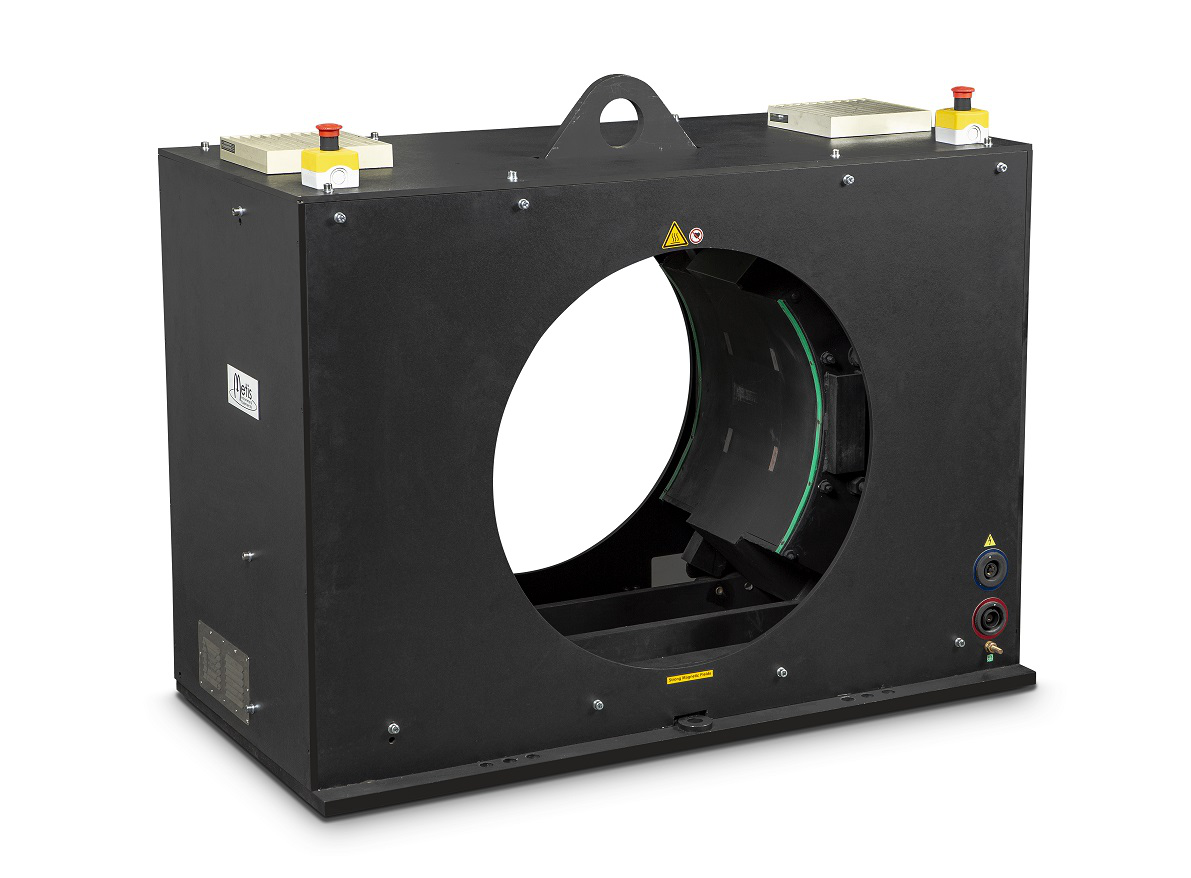

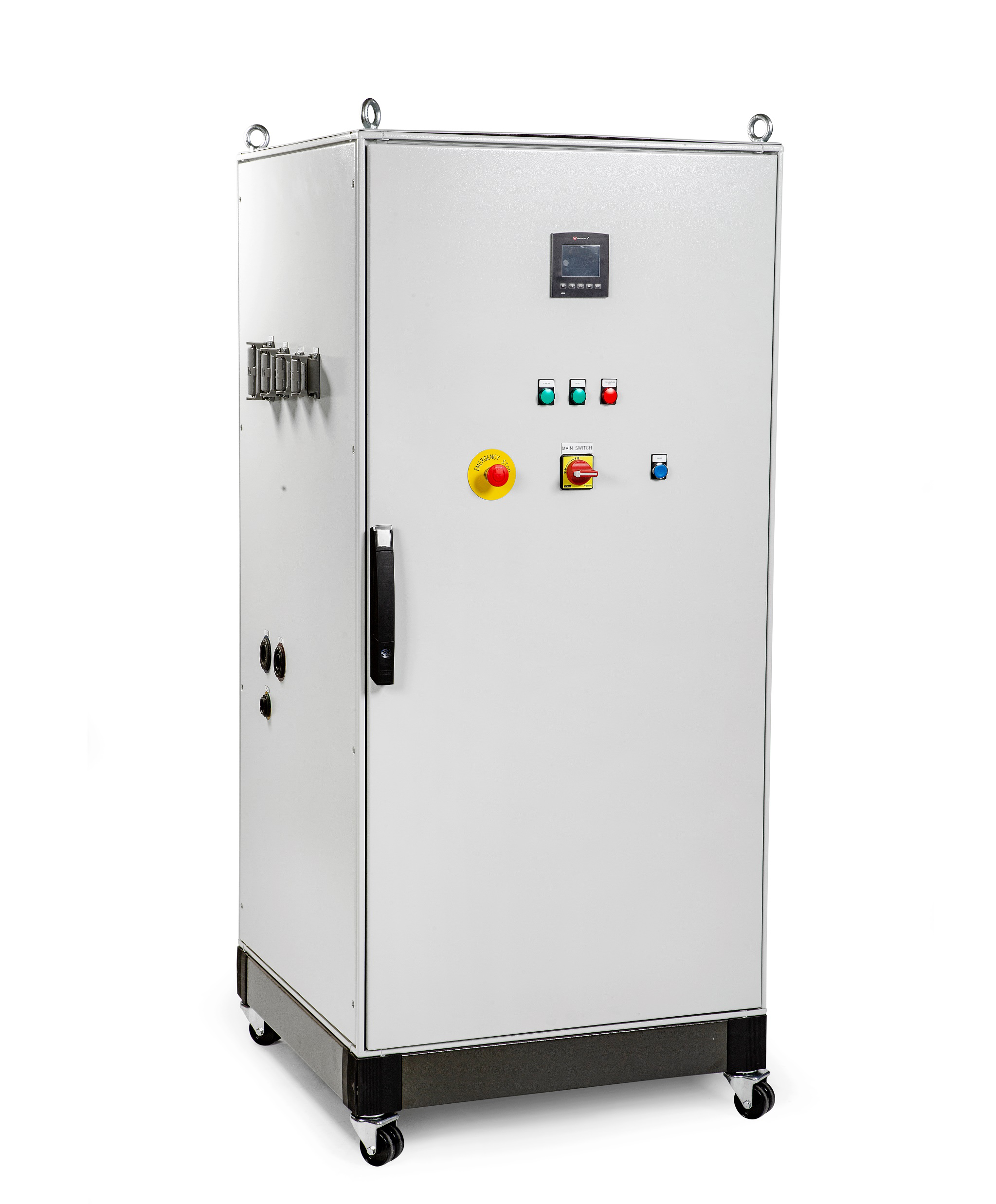

3、充磁機&夾具 Magnetizers & Fixtures
產品介紹
電容放電的充磁機（4至200+千焦&3千伏電壓）可為充磁夾具提供高電量。 夾具：具有優化的磁場，使用能量少，具有足夠的磁極過渡，優化的應力分布以及通過內部冷卻實現的高重復率。各種形狀的磁性輪廓都可定制。 靈活的模塊化生產解決方案可磁化各種幾何體。
Capacitive discharge magnetizer (Energy range 4 till 200+ kJ & 3 kV voltage) delivering high power for magnetizing fixtures. Fixtures with optimized magnetic field using less energy, with adequate pole transitions, optimized stress distribution and high rep rate through internal cooling. All kinds of shape of the magnetic profile are customizable. Flexible and modular production solution allow different geometries to be magnetized with moderate extra investments. |
